Personnel Protection Insulation in UAE
by Novoclad Insulation Contracting LLC
Personnel Protection Insulation in UAE by Novoclad Insulation Contracting LLC
Serving Dubai • Abu Dhabi • Sharjah • Ras Al Khaimah • Ajman • Fujairah • Al Ain • Umm Al Quwain • Marine & Offshore UAE
Protecting UAE Workers from Burn Hazards — Since Day One
Novoclad Insulation Contracting LLC is one of the UAE's most experienced personnel protection insulation contractors, delivering certified design, procurement, construction, and commissioning of personnel protection insulation systems for pipelines, vessels, equipment, and pumps — across industrial, marine, and offshore sectors throughout Abu Dhabi, Dubai, Sharjah, Ras Al Khaimah, Ajman, Fujairah, Al Ain, and Umm Al Quwain.
We offer traditional personnel protection insulation systems where both heat conservation and worker protection are required, and mesh or perforated sheet guard systems where a physical contact barrier is needed without full thermal enclosure. When you need reliable, compliant personnel protection insulation in UAE, Novoclad delivers.
15+
Years in UAE Insulation
8
Emirates Covered
500+
Projects Completed
100%
HSE Compliance Focus

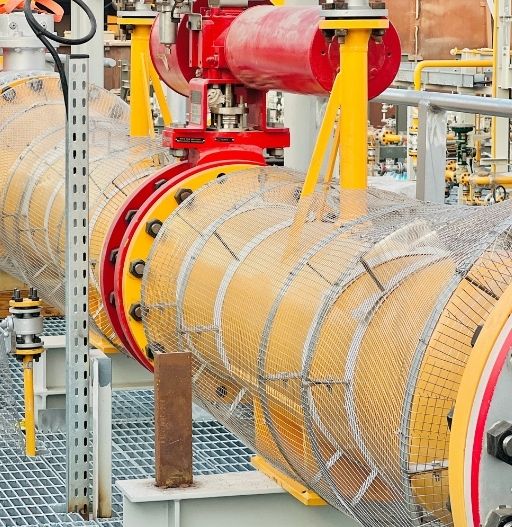

Why Choose NOVOCLAD for Personnel Protection Insulation?
Because Every Worker Deserves to Go Home Safe
-
Full-Spectrum Personnel Protection Insulation Solutions: We deliver both traditional insulation-based protection and mesh/perforated guard systems, selecting the right approach based on your process requirements, operating temperatures, and site constraints.
-
Serving All UAE Emirates and Marine/Offshore: We operate across Abu Dhabi, Dubai, Sharjah, Ras Al Khaimah, Ajman, Fujairah, Al Ain, and Umm Al Quwain, with proven capability on marine vessels and offshore platforms.
-
Certified and Standards-Compliant: All Personnel Protection Insulation systems are designed and installed in strict accordance with UAE HSE regulations, OSHA requirements, and EN ISO 13732-1 (burn risk from contact with hot surfaces).
-
Full-Lifecycle Service: From hazard assessment and custom fabrication through installation, quality inspection, and ongoing maintenance contracts — Novoclad manages your entire Personnel Protection Insulation programme end to end.
Two Types of Personnel Protection Insulation Systems We Deliver
Choosing the Right Protection for Every Scenario

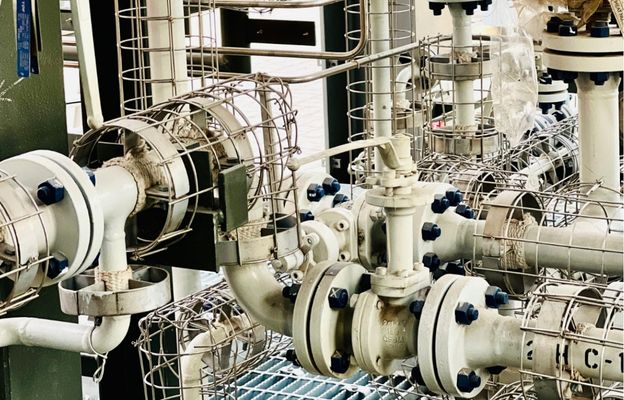

Type 1: Traditional Insulation System
Used where heat gain control and personnel protection are both required. A complete insulation system — mineral wool, fiberglass, or calcium silicate — is applied to the pipeline, vessel, or equipment and finished with a metallic cladding outer jacket.
The insulation layer reduces the outer surface to safe touch temperatures while simultaneously conserving process heat. This is the system of choice for steam lines, hot water pipework, and high-temperature process equipment where energy efficiency and worker safety must both be delivered.

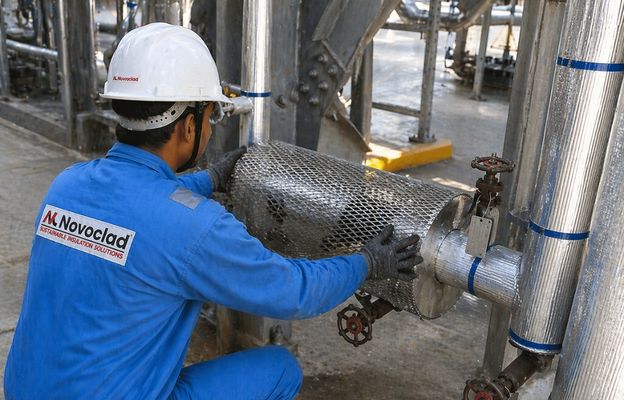

Type 2: Mesh / Perforated Sheet Guard System
Used where process requirements do not demand thermal insulation but worker safety from accidental contact must still be ensured. Expanded metal or perforated sheet guards are secured away from the hot surface using standoff brackets, creating a physical touch barrier — also known as a "touch guard" or "heat guard".
The standoff design allows natural air convection around the hot surface while preventing skin contact. This is a fast and cost-effective solution for steam traps, exhaust manifolds, bare process flanges, and other areas where visual inspection through the guard is also an advantage.
Industries We Serve
Protecting Workers Across Every High-Risk Industrial Sector in UAE
-
Oil and Gas Protect maintenance crews and operators from high-temperature pipelines, flanges, valves, steam traps, and associated equipment on onshore and offshore oil and gas facilities.
-
Power Generation Shield plant workers from steam turbine casings, boiler surfaces, steam tracing systems, and high-temperature pipework in UAE power stations and district cooling plants.
-
Petrochemical and Chemical Processing Guard workers against accidental contact with heat exchangers, reactors, pump casings, and chemical process lines in UAE petrochemical and refining complexes.
-
Metals and Mining Provide burn protection around kilns, furnaces, smelters, and heat treatment equipment.
-
Food and Beverage Reduce contact burn risks around steam ovens, pasteurisers, and hot process lines in food production and bottling facilities.
-
Marine and Offshore Insulate hot surfaces on marine vessels, accommodation modules, and offshore platforms where confined working spaces bring personnel into close proximity with heat sources.
-
Industrial Construction and HVAC Protect construction and maintenance workers from hot mechanical and utility systems during fit-outs, plant commissioning, and HVAC installations.
-
Pharmaceutical and Biotechnology Ensure safe handling near autoclaves, sterilisation units, and heated process equipment in sterile manufacturing environments.

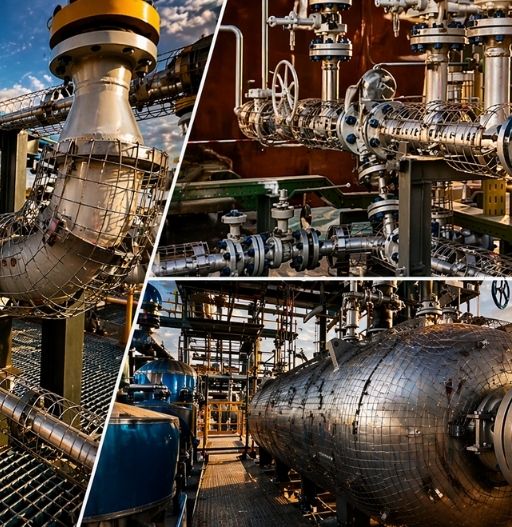

Application Areas
Personnel Protection Insulation for Pipelines, Vessels, Equipment and Pumps
- Pipelines and Process Pipework: Traditional insulation or mesh guards on hot lines accessible to plant personnel in walkways, pipe racks, and confined spaces.
- Valves and Flanges: Custom removable insulation jackets shaped to valve bodies and flanges — safe burn protection with quick-release access for maintenance.
- Pressure Vessels and Tanks: Outer-surface insulation to reduce accessible shell temperatures on vessels operating at elevated process temperatures.
- Pumps and Compressors: Personnel Protection Insulation cladding and guards for pump casings and compressor bodies where operators work at close range during routine checks and maintenance.
- Boilers and Heat Exchangers: Surface insulation on boiler shells and heat exchanger barrels to eliminate burn risk in boiler rooms and plant rooms.
- Steam Traps and Steam Trap Stations: Standoff cage guards and removable jackets to protect personnel in steam trap maintenance areas — a recognised high-risk contact zone in industrial plants.
- Exhaust Ducts and Manifolds: Mesh or insulated guards on exhaust systems to prevent burns in engine rooms, generator sets, and process plant exhaust routes.
Understanding Personnel Protection Insulation (PPI)
Standards, Safety, and What Sets Personnel Protection Insulation Apart
What Is Personnel Protection Insulation?
Personnel Protection Insulation (PPI) covers insulation systems and physical guard systems applied to hot surfaces on pipelines, vessels, equipment, and pumps with the goal of preventing burn injuries from accidental worker contact. Personnel Protection Insulation either reduces accessible outer surface temperatures to safe touch limits (below 60°C) or creates a standoff barrier that prevents direct skin contact entirely — depending on the system type selected.
Why Is Personnel Protection Insulation Critical in UAE?
The UAE's industrial landscape — spanning offshore platforms, petrochemical complexes, power stations, desalination plants, and manufacturing facilities — involves extensive worker exposure to thermally hazardous surfaces. Extreme ambient temperatures further elevate the burn risk from exposed hot surfaces, making certified Personnel Protection Insulation systems both a regulatory requirement and a core duty of care for every responsible industrial operator across all Emirates.
Standards We Work To
Our Personnel Protection Insulation systems comply with EN ISO 13732-1 (ergonomics of the thermal environment — burn risk from contact with hot surfaces), OSHA 29 CFR 1910.212, UAE Ministry of Human Resources HSE regulations, and client-specific engineering specifications issued by ADNOC, DEWA, and other major UAE operators. Every installation is documented with full quality handover records.
Materials We Use
High-Performance Insulation and Guard Systems for Reliable Worker Protection
Mineral Wool (Rockwool) High-density mineral wool slabs and blankets — a primary choice for traditional Personnel Protection Insulation systems, providing excellent surface temperature reduction and fire resistance across pipe, vessel, and equipment applications.
Fiberglass Insulation Lightweight fiberglass pipe sections and boards that effectively lower outer surface temperatures while adapting to varied pipe diameters, vessel shapes, and equipment geometry.
Calcium Silicate Excellent for high-temperature Personnel Protection Insulation applications — calcium silicate pipe sections and blocks offer exceptional compressive strength, dimensional stability, and long-term thermal performance.
Removable Insulation Jackets Custom-fabricated insulation blankets for valves, flanges, pumps, and irregular fittings. Easy to remove for maintenance and reinstall without damage — combining burn protection with full operational access.
Expanded Metal Mesh Guards Standoff expanded metal guard systems secured away from hot surfaces on brackets — creating a physical touch barrier where process requirements do not call for full thermal insulation.
Perforated Sheet Guards Perforated aluminium or steel sheet cladding fixed on standoff brackets to provide a safe contact barrier while allowing natural air convection and through-guard visual inspection of the hot surface.
Outer Cladding, Jacketing, and Guard Materials:
- Perforated Aluminium Sheeting: Lightweight, corrosion-resistant outer cladding that allows air circulation while providing a safe touch surface — standard choice for traditional Personnel Protection Insulation in outdoor and coastal UAE environments
- Expanded Metal (Aluminium / Steel): Open-mesh guard material held away from hot surfaces on standoff brackets, forming a physical touch barrier without enclosing the object thermally
- Stainless Steel (SS304/SS316): Heavy-duty cladding and guard material for aggressive environments including offshore, chemical processing, and marine applications
- Galvanised Steel: A robust and cost-effective outer jacket and guard material for indoor industrial Personnel Protection Insulation applications
- Wired Glass Cloth (WGC) Facing: Flexible, heat-resistant outer facing for removable insulation jackets on valves, flanges, and fittings where easy refastening is required
Contact Us: Protect Your People. Protect Your Business.
At NOVOCLAD INSULATION CONTRACTING L.L.C., trusted Personnel Protection Insulation Contractors in UAE, we are committed to making every worksite safer. Contact us today for a free site assessment — our experts will design the right Personnel Protection Insulation solution, traditional insulation system or mesh/perforated guard, to keep your workforce protected, your operations compliant, and your liability minimized.
About Novoclad
UAE's Trusted Name in Personnel Protection Insulation
Novoclad Insulation Contracting LLC is one of the UAE's leading insulation contracting companies, specialising in personnel protection insulation, hot insulation, cold insulation, and metallic cladding across industrial, commercial, marine, and offshore sectors.
With offices in Dubai and Sharjah and operational reach across all seven Emirates, Novoclad brings proven technical expertise, certified installation teams, and a compliance-first approach to every personnel protection insulation project — from a single steam trap guard to a full-plant personnel protection insulation programme for a major UAE operator.
Our clients include operators in oil and gas, power generation, petrochemicals, desalination, food and beverage, marine, and construction — all trusting Novoclad to protect their most valuable asset: their people.
Our Personnel Protection Insulation Services Cover:
- ✓ Dubai & UAE
- ✓ Abu Dhabi
- ✓ Sharjah
- ✓ Ras Al Khaimah
- ✓ Ajman
- ✓ Fujairah
- ✓ Al Ain
- ✓ Umm Al Quwain
- ✓ Marine & Offshore
- ✓ Oil & Gas Sites
Frequently Asked Questions: Personnel Protection Insulation in UAE
Common Questions About Personnel Protection Insulation — Answered by Novoclad Insulation Contracting LLC
Personnel protection insulation (PPI) covers both traditional insulation systems and physical guard systems applied to hot pipelines, vessels, equipment, and pumps to prevent burn injuries to workers from accidental surface contact. Traditional Personnel Protection Insulation reduces outer surface temperatures to safe levels (typically below 60°C), while mesh and perforated sheet guard systems create a physical standoff barrier that prevents direct skin contact without enclosing the object thermally.
A traditional Personnel Protection Insulation system uses insulation materials (mineral wool, fiberglass, calcium silicate) with metallic cladding to reduce outer surface temperatures — also conserving process heat. A mesh or perforated sheet guard system uses expanded metal or perforated sheet held away from the hot surface on standoff brackets, creating a physical touch barrier without controlling surface temperature. Guards are the right solution where process requirements do not demand full insulation — for example, on bare steam traps, exhaust manifolds, or uncovered hot equipment in maintenance areas.
Yes. UAE HSE regulations, along with the specific requirements of major industrial operators such as ADNOC and DEWA, mandate that accessible hot surfaces must be protected to prevent contact burns. International standards including EN ISO 13732-1 define the temperature thresholds that trigger mandatory protection requirements. Non-compliance can result in serious legal, financial, and reputational consequences for operators, in addition to the harm caused to workers.
For traditional Personnel Protection Insulation systems, Novoclad uses mineral wool (rockwool), fiberglass, and calcium silicate with aluminium, stainless steel, or galvanised steel cladding. For guard systems, we fabricate expanded metal or perforated sheet guards using aluminium or steel on standoff brackets. For valves, flanges, pumps, and irregular fittings we custom-fabricate removable insulation jackets using high-temperature fill materials with wired glass cloth (WGC) or stainless-steel mesh outer facings.
In many cases, yes. Novoclad's installation team is experienced in live plant installations and can apply both traditional insulation systems and guard systems to operating pipework and equipment with minimal disruption. We work closely with site HSE and operations teams to plan and execute installations safely within permit-to-work frameworks, ensuring zero compromise to plant safety.
Novoclad delivers Personnel Protection Insulation solutions across oil and gas, power generation, petrochemicals, chemical processing, metals and mining, food and beverage, marine and offshore, desalination, pharmaceutical, and industrial construction sectors. We serve clients across all UAE Emirates — Abu Dhabi, Dubai, Sharjah, Ras Al Khaimah, Ajman, Fujairah, Al Ain, and Umm Al Quwain — as well as marine and offshore facilities in UAE waters.
We follow a structured approach: (1) Site survey and thermal hazard identification across all accessible hot surfaces; (2) Engineering design — selecting the correct Personnel Protection Insulation type and specifying materials to meet surface temperature limits or contact prevention requirements; (3) Material procurement and custom fabrication of insulation, cladding, guards, and removable jackets; and (4) Turnkey installation, quality inspection, and full handover documentation. Scheduled maintenance contracts are also available to keep systems compliant over their operational lifespan.
Novoclad — Leading Personnel Protection Insulation Contractors in UAE
If you are searching for personnel protection insulation in UAE, personnel protection insulation contractors in Dubai, personnel protection insulation services in Abu Dhabi, or industrial insulation contractors in Sharjah — Novoclad Insulation Contracting LLC is your certified, experienced partner. We provide a complete range of personnel protection insulation solutions including traditional thermal insulation systems, expanded metal mesh guards, perforated sheet standoff guards, and custom removable insulation jackets for valves, flanges, pumps, and process equipment.
Our personnel protection insulation services are delivered across Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, Ajman, Fujairah, Al Ain, Umm Al Quwain, and marine and offshore facilities throughout the UAE. All work is executed to EN ISO 13732-1, OSHA, and UAE HSE standards. Contact Novoclad Insulation Contracting LLC today at +971 4 344 2172 (Dubai) or +971 58 880 8374 (Sharjah) — or email info@novoclad.ae — for a free site assessment and quotation.
