Hot Insulation Contractors in UAE: Efficiency, Sustainability, and Comfort

Hot insulation is thermal insulation applied to pipes, vessels, boilers, furnaces, and process equipment that operate above ambient temperature — typically above 60°C. In UAE industrial projects, hot insulation is critical for three reasons: it minimises heat loss and reduces energy consumption by up to 30%, it protects personnel from burn injuries on hot surfaces (personnel protection insulation), and it maintains process temperatures within required limits for consistent product quality.

Common applications include oil & gas pipelines, steam distribution systems, power plant equipment, and refinery process units. Properly designed hot insulation systems in UAE typically recover their full installation cost within 12–18 months through fuel and energy savings.

The most commonly used hot insulation materials for oil & gas and industrial projects in UAE are:

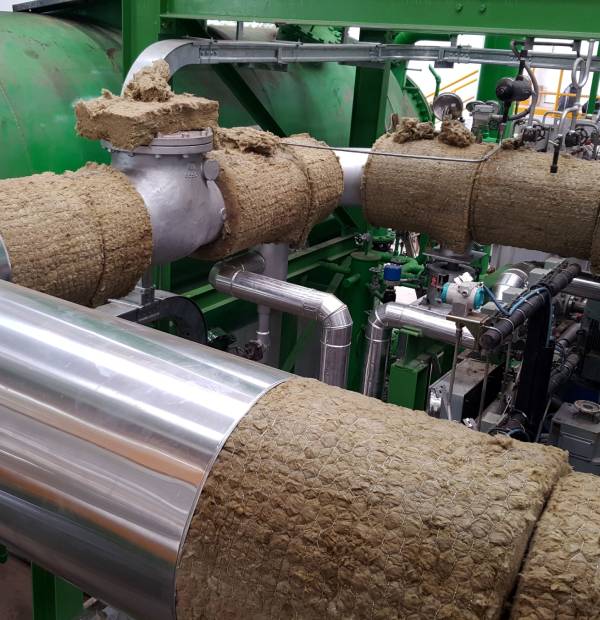

• Mineral Wool (Rockwool) — versatile, high-temperature rated up to 750°C, used on pipes, vessels, and ductwork
• Calcium Silicate — ideal for very high temperatures up to 1000°C, used on boilers, furnaces, and steam systems
• Ceramic Fibre — for extreme temperature applications up to 1400°C, used in kilns, furnaces, and refractory applications
• Fiberglass — cost-effective for moderate temperatures up to 450°C
• Foamglas (Cellular Glass) — moisture-resistant and non-combustible, used where water ingress is a risk

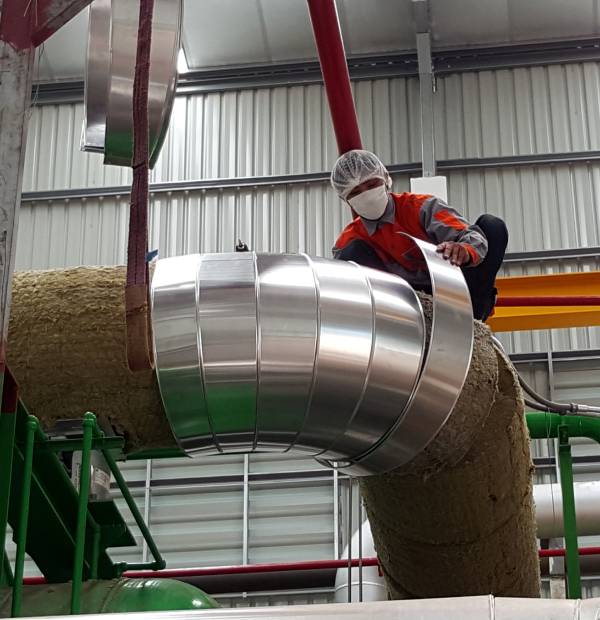

The insulation is finished with protective cladding — typically Aluminium, Stainless Steel SS304/SS316, or Galvanised Steel — to provide mechanical protection and weatherproofing in UAE's harsh outdoor environment.

Hot insulation services in UAE are essential across multiple industries:

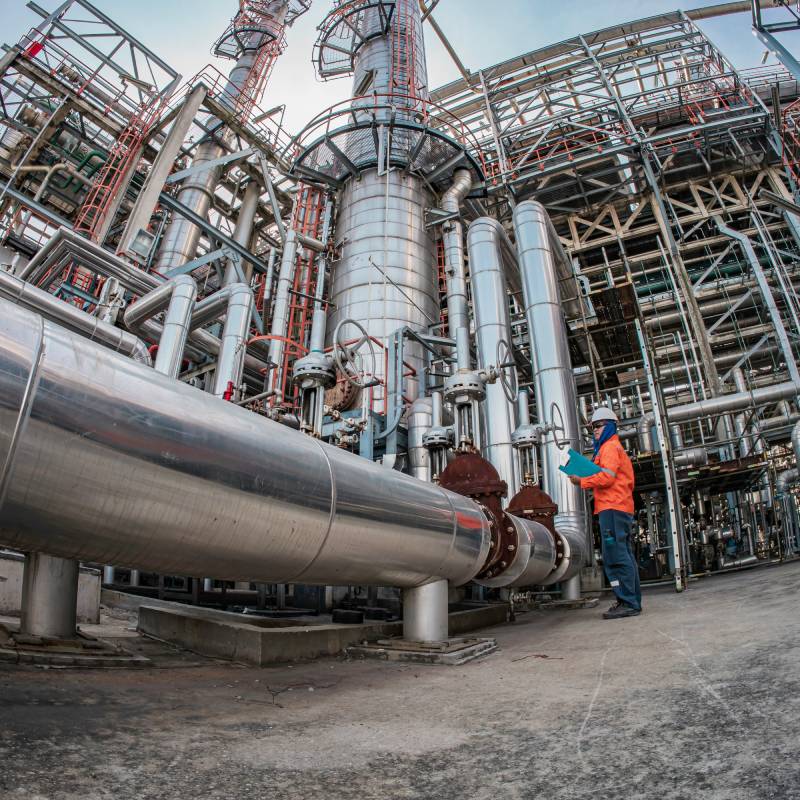

• Oil & Gas — pipeline insulation, vessel insulation, refinery process equipment, LNG and LPG facilities
• Power Generation — steam tracing, boiler insulation, turbine insulation, electric tracing systems
• Petrochemical & Chemical Processing — reactor insulation, heat exchanger insulation, process piping
• Metals & Mining — kiln and furnace insulation, process equipment
• Food & Beverage — oven insulation, temperature-controlled storage
• Marine — boiler and exhaust insulation on ships, yachts, and offshore platforms
• Building Construction — HVAC duct insulation, energy efficiency in commercial and residential buildings

Novoclad serves all these sectors across Dubai, Abu Dhabi, Sharjah, and all seven UAE emirates.

Hot insulation is applied to equipment and piping that operates above ambient temperature (above 60°C) to prevent heat loss, reduce energy consumption, and protect personnel. Cold insulation is applied to equipment and piping that operates below ambient temperature — such as LNG tanks, refrigeration systems, and cryogenic pipelines — to prevent heat gain, stop condensation, and maintain sub-zero temperatures.

The materials, design requirements, and vapour barrier systems differ significantly between hot and cold insulation. Novoclad provides both hot and cold insulation services across UAE, including cryogenic insulation for LNG and LPG applications operating at temperatures as low as -165°C.

Yes. Novoclad Insulation Contracting LLC is a CICPA-approved contractor (Critical Infrastructure and Coastal Protection Authority), which authorizes Novoclad's personnel, vehicles, and operations to carry out insulation and cladding works inside Abu Dhabi's high-security critical infrastructure facilities — including ADNOC oil & gas sites, refineries, LNG terminals, power plants, and offshore platforms. Novoclad is also an ADNOC-registered vendor.

This CICPA clearance is a mandatory requirement for any contractor working in restricted Abu Dhabi industrial zones and is held by very few insulation contractors in UAE, making Novoclad the qualified choice for ADNOC and critical infrastructure projects.

Hot insulation in UAE industrial applications covers equipment and piping across a wide temperature range depending on the material chosen:

• Fiberglass — up to approximately 450°C
• Mineral Wool (Rockwool) — up to 750°C
• Calcium Silicate — up to 1000°C
• Ceramic Fibre — up to 1400°C for kilns, furnaces, and refractory linings

Novoclad selects the appropriate insulation material and thickness based on the operating temperature, pipe or vessel size, required heat loss limits, and applicable international standards such as ASTM, BS EN, ISO, and ADNOC Engineering Specifications.

Properly designed and installed hot insulation systems can reduce heat loss by 85–95% compared to uninsulated surfaces in UAE industrial plants. This translates to energy cost savings of 20–35% on fuel consumption for process heating, with most industrial insulation projects in UAE recovering their full installation cost within 12–18 months through energy savings alone.

For large UAE refineries or power plants, this can represent millions of dirhams in annual savings. Additionally, reduced energy consumption lowers CO2 emissions, supporting UAE Net Zero 2050 sustainability targets and ADNOC's decarbonisation goals.

Yes. Novoclad manufactures and installs custom removable insulation jackets (also called insulation blankets or pillows) for valves, flanges, pumps, expansion joints, steam traps, and process equipment that require regular access for maintenance, inspection, or operation in UAE industrial plants.

Removable jackets are designed to be easily removed and refitted without damaging the insulation system, making them ideal for process plant valves, instrumentation points, and heat exchangers. They are available in a range of temperature ratings and outer cover materials suitable for UAE's demanding outdoor industrial environments including offshore and onshore applications.
